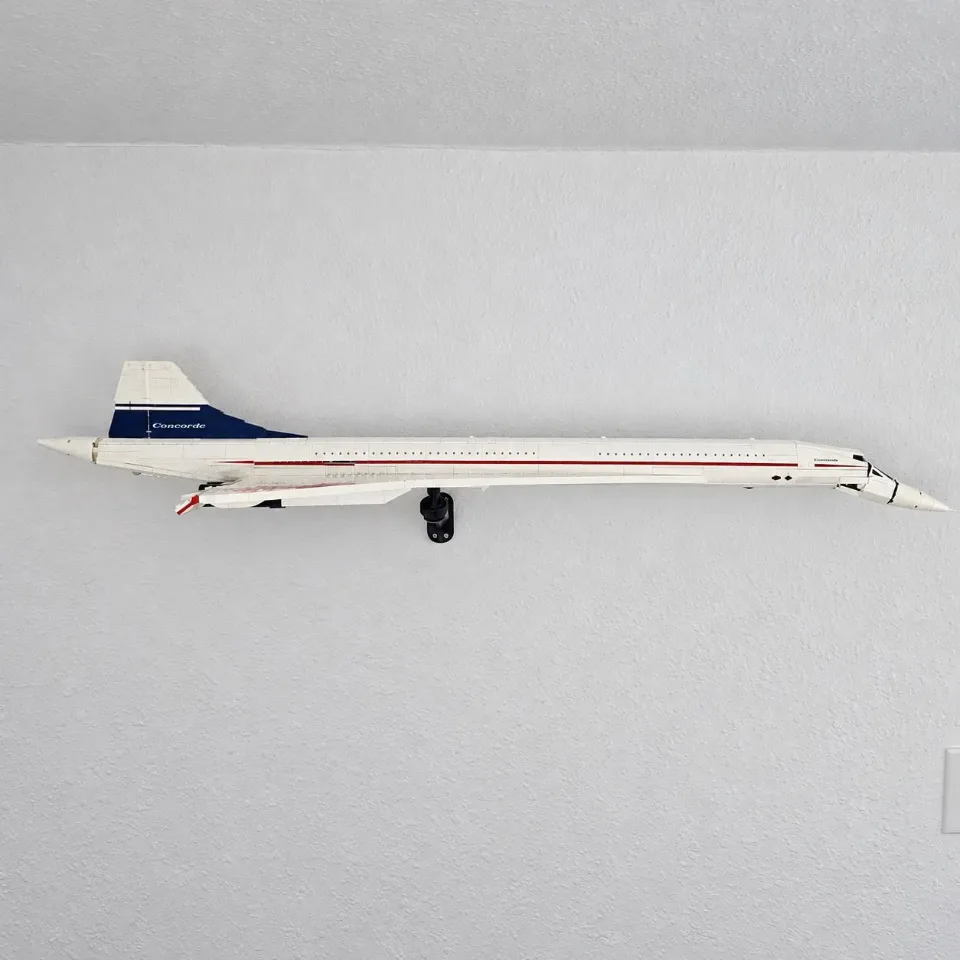

Concorde (10318) — adjustable wall mount
Prepare Concorde’s underside for the dedicated adapter, then attach it to the adjustable arm. Use the marked photos and video together; the white tiles are refitted to retain the adapter.
Reference 10318
YOUR SELECTED ITEM
Adjustable Wall Mount for LEGO® Concorde (10318)
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver
- Level
- Fine-tip pencil
- Tape measure
- Stud finder and drill, if required by your wall hardware
Parts & hardware
- Mounting arm
- Concorde adapter ball
- Optional screw cover
- Wall screws and anchors appropriate for your wall (supplied only if ordered)
SOURCE YOUR OWN HARDWARE
Need mounting hardware?
If you did not order mounting hardware with your mount, use the specifications and links below to source the hardware you need.
Screws & Anchors (Yellow)
- Specifications
- 20.0-lb 1/4-in x 7/8-in Push-In Anchors with Screws
SEE IT COME TOGETHER
Watch the installation
Watch on YouTubeFollow along with the installation ↗Opens in a new tab so you can keep these instructions handy.
Prepare and secure the arm
Choose a location with room for the complete set and clearance from nearby objects. Use screws and, where needed, anchors suitable for your wall material and the combined weight of the mount and set. Follow the hardware manufacturer’s instructions for hole size and installation. Check for concealed services before drilling. Hold the mounting part in position, check its alignment with a level, and mark the holes. Line up the mount with the prepared holes. Start the screws, check the alignment, then tighten gradually with a screwdriver until the mount is firm against the wall. Do not overtighten or bend the printed mounting points. If the mount moves or rocks, correct the installation before adding your set.
Fit the optional screw cover
If supplied, slide the screw cover over the arm and guide it over the wall screws. It is held in place by friction and gravity. Support the arm and avoid heavy downward pressure. If the cover catches, stop and check its orientation instead of forcing it.
Remove the marked white tiles

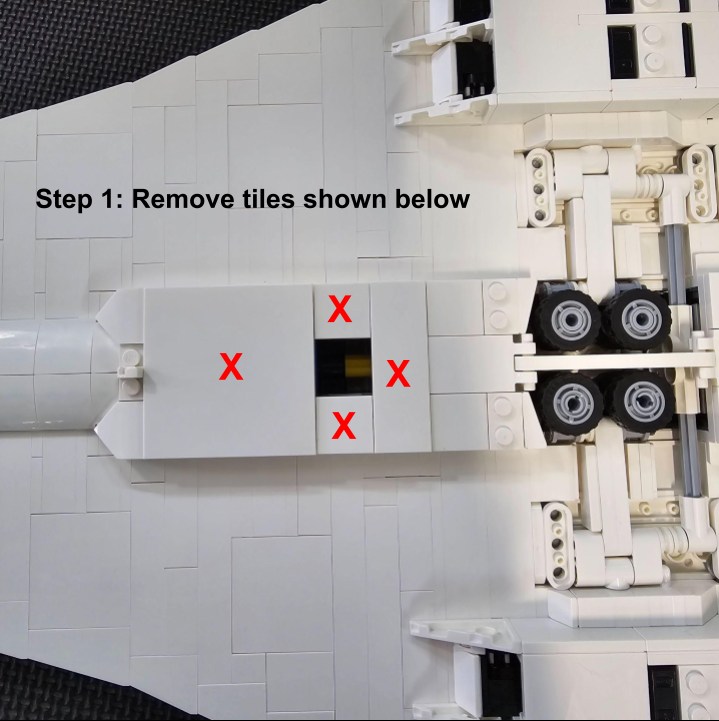

Support Concorde without resting its weight on fragile parts. Remove only the white underside tiles marked with red Xs. Keep them together; they will be reinstalled after fitting the adapter.
Remove the gray hollow square plate

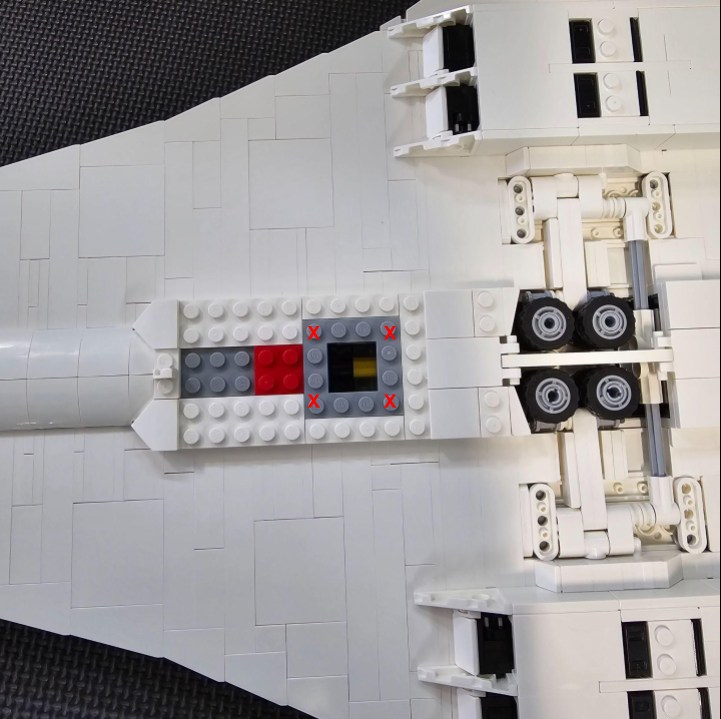

Compare the exposed area with this second photo. Remove the gray hollow square plate described in the original instructions and put it somewhere safe. Leave the surrounding structure intact.
Fit the adapter and replace the white tiles
Follow the video to position the adapter ball in the prepared opening. Check its orientation, then refit the white tiles as demonstrated to retain the adapter. If a tile will not seat, recheck the adapter instead of forcing it.
Connect Concorde to the arm
With a helper supporting the aircraft if needed, attach the adapter ball to the arm. Keep the connection aligned and tighten by hand. Check that the adapter and refitted tiles remain fully engaged.
Set a balanced display angle
Support the set’s full weight while making small adjustments. Start with a level or modest angle and check that the set clears the wall. Hand-tighten the joint only enough to hold the chosen position; do not force or overtighten it. Steep or overly aggressive angles can move the set’s center of mass away from its support and strain the joint and brick connections. The set could detach or fall. The joint’s range of movement does not mean every angle is suitable. If the set slips, tips, or pulls apart, support it immediately, reduce the angle, or remove it and check the attachment. Gradually release your support only after the set is fully seated and stable. Check that the wall mount, adapter, and brick connections remain secure. If anything shifts or loosens, remove the set and correct the problem before displaying it. Support the set whenever you adjust or remove it.
