Set Specific Directions

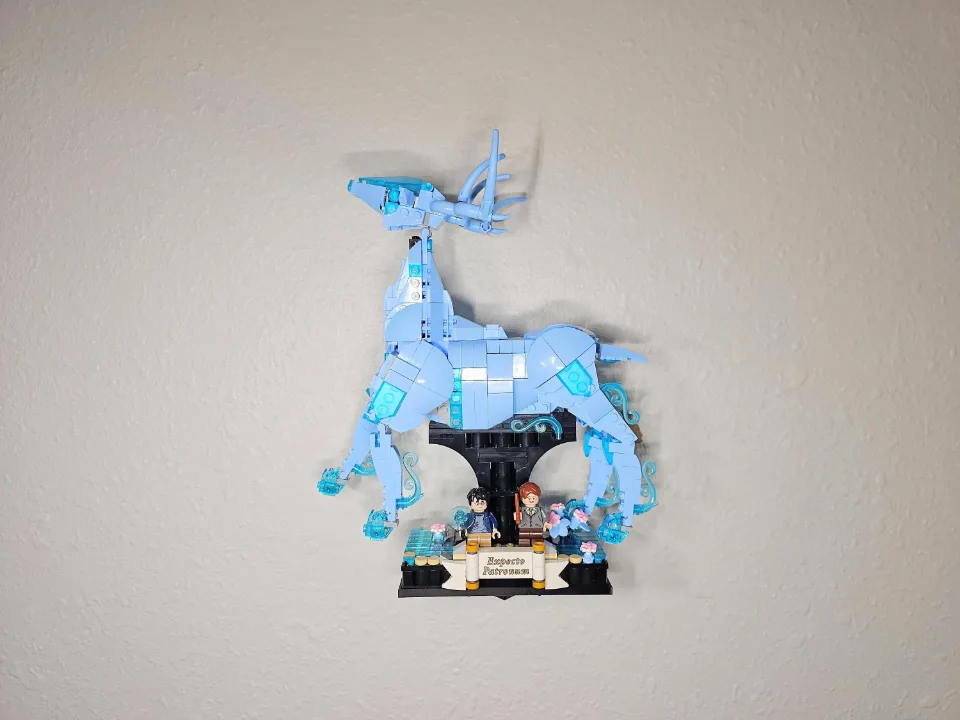

Expecto Patronum (76414) — tray wall mount
Use one Slim or Wedge bracket and select the animation that matches the hardware in your order.
Reference 76414
YOUR SELECTED ITEM
Wall Mount for LEGO® Harry Potter Expecto Patronum (76414)
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Level, pencil, screwdriver, drill and bit matched to the fasteners.
Parts & hardware
- Slim — 1 bracket, 2 tray screws with washers, 2 wall screws
- Wedge — 1 bracket, 2 tray screws with washers, 2 wall screws
Align the tray and bracket
Use one Slim or Wedge bracket and select the animation that matches the hardware in your order. On a stable surface, line up the recessed tray holes with the bracket inserts shown in the animation. Face the flat mounting surfaces toward the wall.
Fasten the tray before marking the wall
Place a washer in each selected recess. Start the supplied low-profile M3 screws through the tray into the threaded bracket inserts by hand. Tighten evenly until snug. Check that the tray and bracket sit firmly together.
Level the assembled mount and mark the wall
Hold the empty, fully assembled mount level against the wall. Mark all 2 wall holes through the attached bracket. Check for concealed wiring or pipes before drilling.
Prepare the wall and secure the mount
Set the mount aside. Use fasteners rated for your wall and the loaded display. For drywall anchors, drill to the specified size and fit the anchors flush. For a stud, follow the screw manufacturer’s pilot-hole instructions. Align the empty mount and start all wall screws. Check the level, tighten until snug and check for movement.
Seat the display
Lift the Patronus display by its base. Lower it onto the tray and check clearance above and around the animal. Release your support gradually. If the model rocks or the mount shifts, lift the set off before adjusting it.
