Set Specific Directions

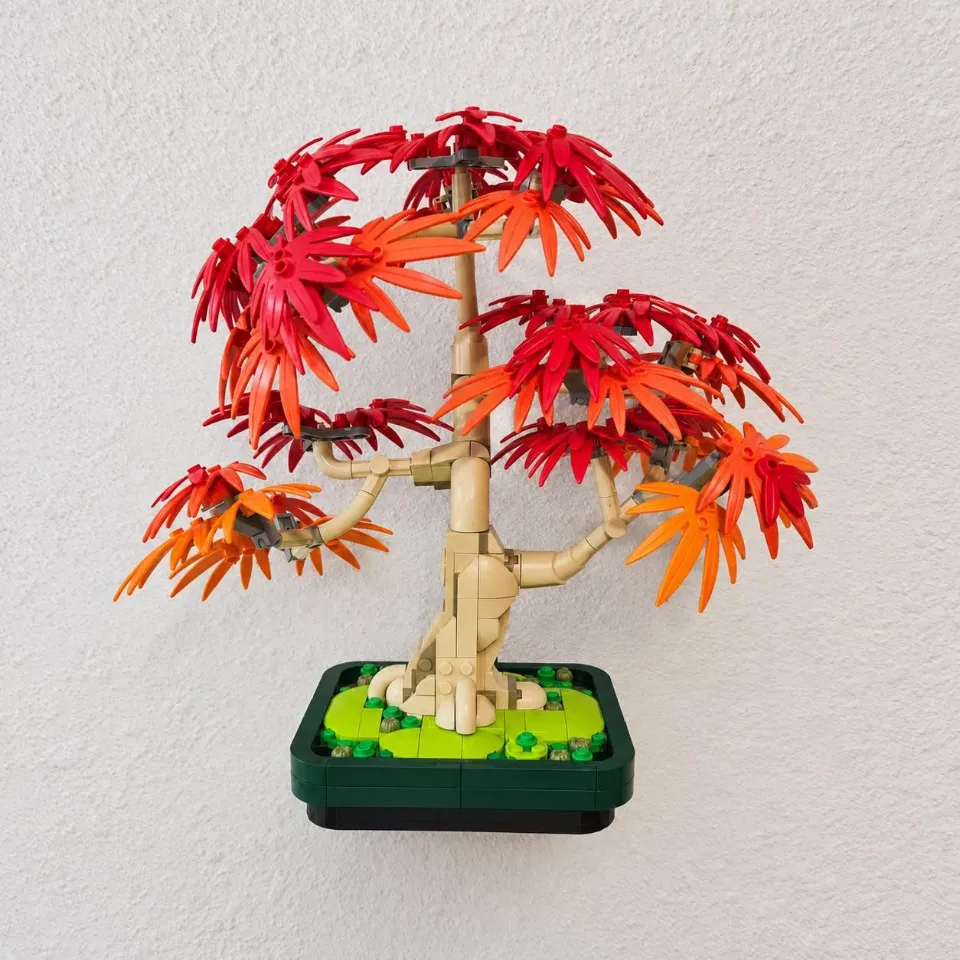

Japanese Red Maple Bonsai Tree (10348) — wall mount
The shaped tray supports the maple’s planter.
Reference 10348
YOUR SELECTED ITEM
Wall Mount for LEGO® Japanese Red Maple Bonsai Tree (10348)
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Level, pencil, screwdriver, and a drill and bit suitable for the fasteners.
Parts & hardware
- 2 wall screws and, for drywall where required, 2 compatible anchors rated for the wall and loaded display.
Level the empty mount and mark the wall
Hold the back of the empty mount flat against the wall with the platform level. Check clearance for the set and room to lift it on and off. Check for concealed pipes and wiring, then mark both holes through the mounting tab.
Prepare the holes and fasten the mount
Set the mount aside. For drywall anchors, drill at each mark to the size specified for the anchors and press them flush. For a stud, follow the screw manufacturer’s pilot-hole instructions. Align the mount, start each screw, recheck the level and tighten until snug. Check that the empty mount sits firmly against the wall.
Seat the display
Lift the planter from beneath and settle it inside the raised edge. Check that the planter sits flat and the branches clear the wall. If the mount moves or the set rocks, lift the set off and check the fit and fasteners.
