Set Specific Directions

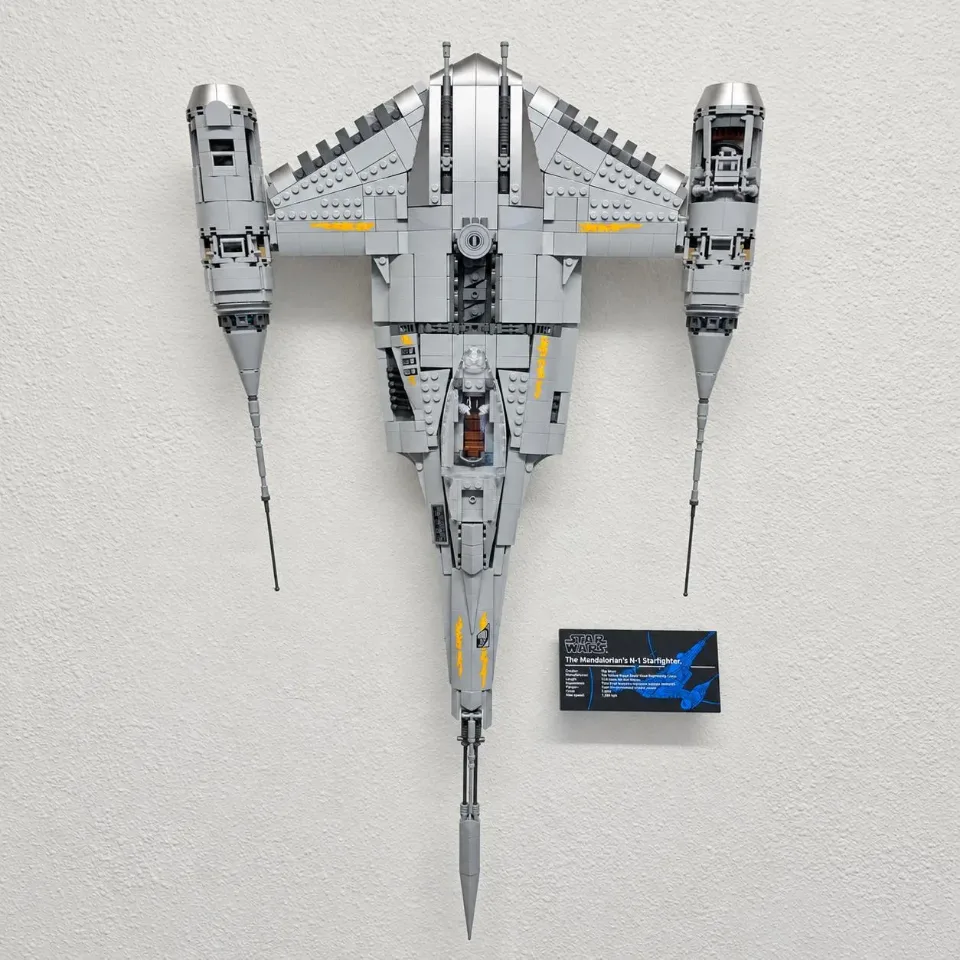

The Mandalorian’s UCS N-1 Starfighter (75442) — vertical wall mount
Identify the wall-side and set-side pieces, fit the adapter using the video, and seat the Starfighter on the wall mount. This guide applies to the vertical version.
Reference 75442
YOUR SELECTED ITEM
Vertical Wall Mount for LEGO® UCS The Mandalorian's N-1 Starfighter™ (75442)
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver
- Level
- Fine-tip pencil
- Tape measure
- Stud finder and drill, if required by your wall hardware
Parts & hardware
- Wall-side mounting plate
- Set-side adapter
- Wall screws and anchors appropriate for your wall (supplied only if ordered)
SOURCE YOUR OWN HARDWARE
Need mounting hardware?
If you did not order mounting hardware with your mount, use the specifications and links below to source the hardware you need.
Screws & Anchors (Yellow)
- Specifications
- 20.0-lb 1/4-in x 7/8-in Push-In Anchors with Screws
SEE IT COME TOGETHER
Watch the installation
Watch on YouTubeFollow along with the installation ↗Opens in a new tab so you can keep these instructions handy.

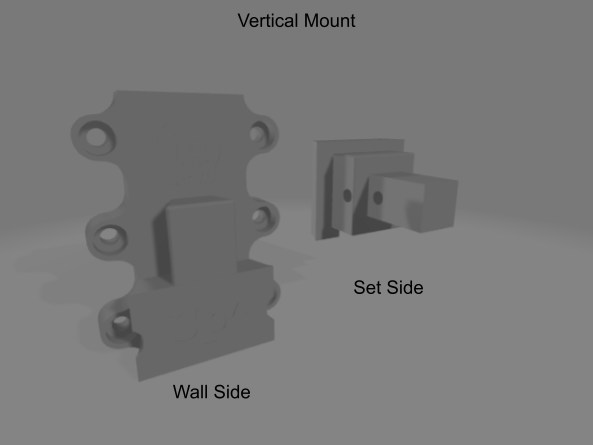

Identify the wall-side and set-side parts
Choose the guide for the style selected in your order. These steps cover the Vertical mount. For the Adjustable option, follow https://install.bp3dprintshop.com/products/83654d67-7f6c-4705-b74e-1373b65d308b instead. Use the labels in the image to distinguish the pieces. The larger plate labeled “Wall Side” attaches to the wall. The smaller piece labeled “Set Side” attaches to the model as demonstrated in the video.
Install the wall-side plate
Choose a location with room for the complete set and clearance from nearby objects. Use screws and, where needed, anchors suitable for your wall material and the combined weight of the mount and set. Follow the hardware manufacturer’s instructions for hole size and installation. Check for concealed services before drilling. Hold the mounting part in position, check its alignment with a level, and mark the holes. Secure the part labeled “Wall Side” to the wall in the orientation shown. Line up the mount with the prepared holes. Start the screws, check the alignment, then tighten gradually with a screwdriver until the mount is firm against the wall. Do not overtighten or bend the printed mounting points. If the mount moves or rocks, correct the installation before adding your set.
Fit the set-side adapter
Watch the original installation video above and follow its sequence to attach the smaller piece to the Starfighter. Support the model throughout and check each connection before lifting it toward the wall.
Seat the set on the wall mount
Align the adapter with the wall-side plate and slide the set onto the mount as demonstrated. Keep supporting it until the connection is fully seated. If the pieces do not engage, remove the set and check the orientation rather than forcing them.
Check the finished display
Gradually release your support only after the set is fully seated and stable. Check that the wall mount, adapter, and brick connections remain secure. If anything shifts or loosens, remove the set and correct the problem before displaying it. Support the set whenever you adjust or remove it.
