Set Specific Directions

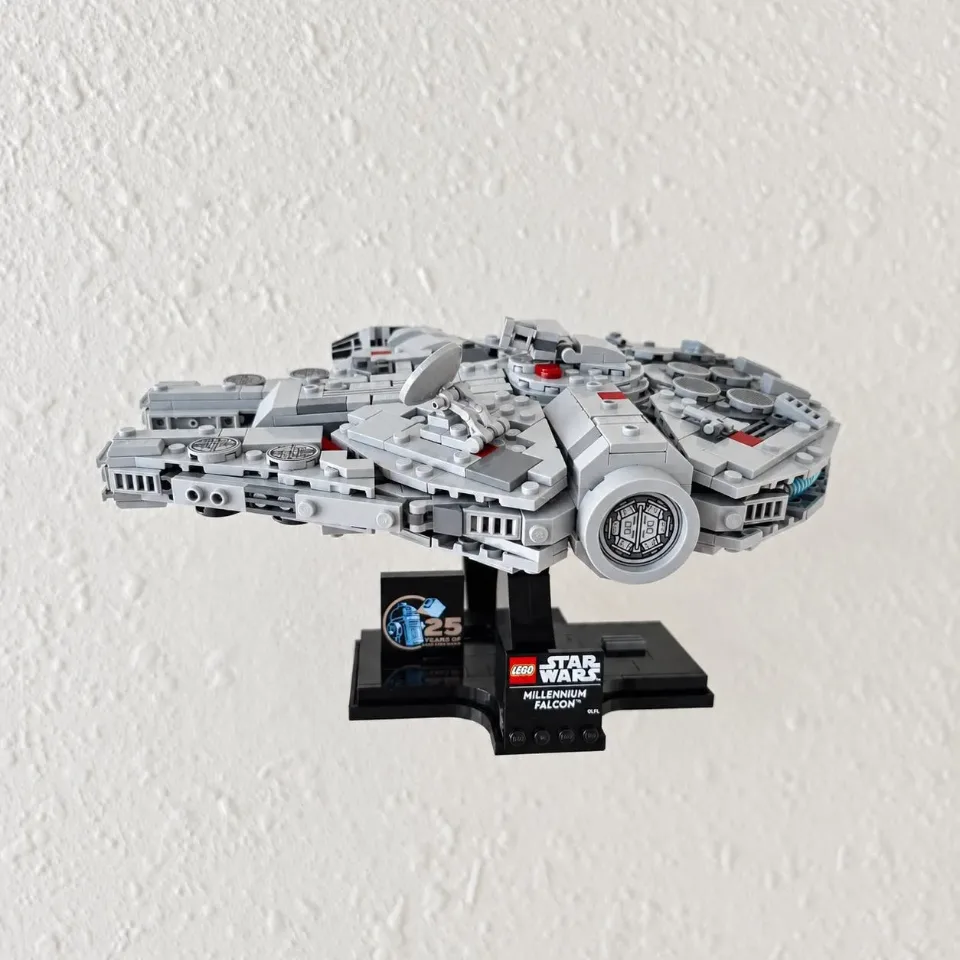

Millennium Falcon (75375) — tray wall mount
Assemble the Millennium Falcon tray with 1 Slim or Wedge bracket before marking the wall. Follow the animation matching the brackets in your order.
Reference 75375
YOUR SELECTED ITEM
Wall Mount for LEGO® Millennium Falcon™ (75375)
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver, level, pencil and a drill and bit suitable for the wall hardware.
Parts & hardware
- 1 Millennium Falcon tray
- Slim option — 1 bracket, 3 low-profile M3 screws, 3 washers and pre-installed threaded inserts
- Wedge option — 1 bracket, 4 low-profile M3 screws, 4 washers and pre-installed threaded inserts
- Wall screws for 2 wall holes and suitable anchors where needed.
Match the tray and brackets
Choose the animation for your supplied bracket type. Position the empty tray above the brackets with the wall-mounting faces toward the wall. Align the tray holes used in that animation with the pre-installed threaded inserts.
Fasten the tray before marking the wall
Place a washer in each selected recess. Start each low-profile M3 screw by hand through the tray and into its insert, then tighten evenly until snug. Each screw head and washer must sit below the tray’s supporting surface.
Level the assembled mount and mark the wall
Hold the assembled, empty mount against the wall. Check the level and clearance for the full set, then mark all 2 wall holes through the brackets. Set the mount aside.
Prepare the wall and secure the mount
Check the drilling location for concealed wiring and pipes. Prepare each hole for the selected wall screws or anchors. Seat anchors flush where required. Align the assembled mount, start each wall screw and tighten until snug. Check that the empty tray is firm and level.
Seat the set
Support the full base of the set as you lower it into the tray. Check that the base sits flat, the mounting hardware clears it, and the set has room around its projecting details. Release your support gradually once it is stable.
