Set Specific Directions

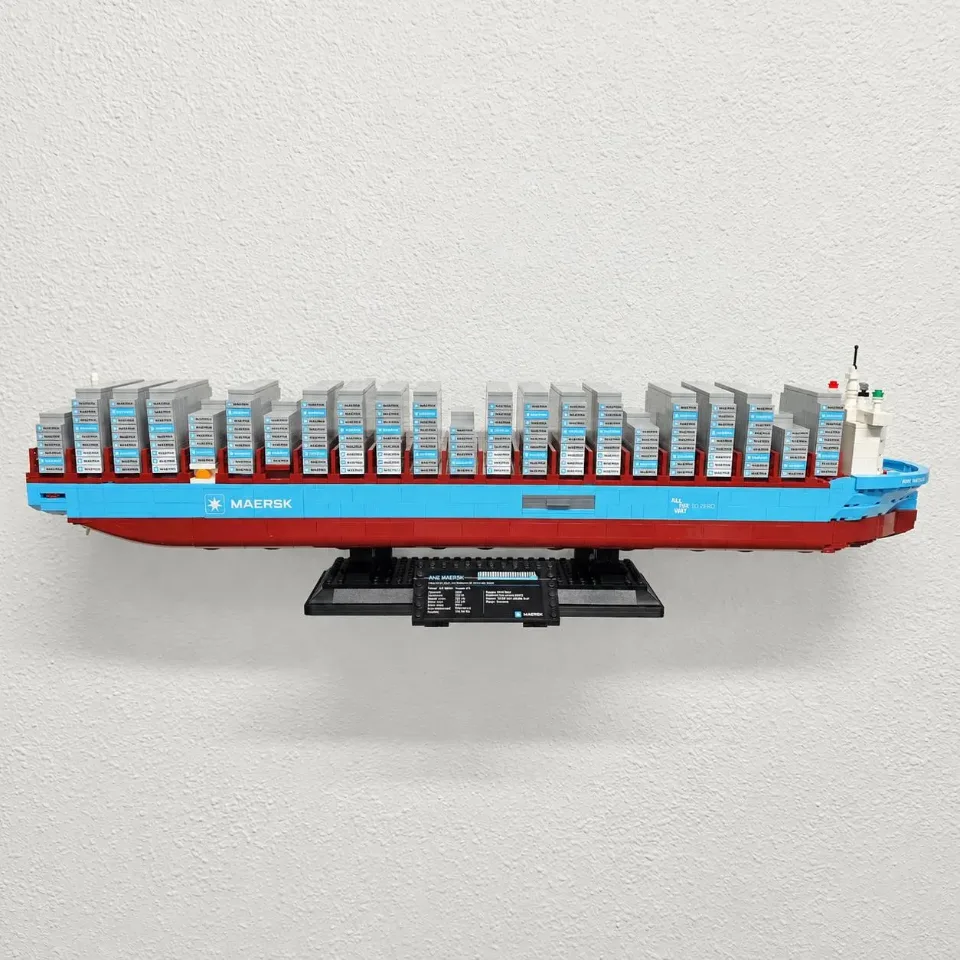

Wall Mount for LEGO® Maersk Dual-Fuel Container Vessel (40955)
Assemble the tray with either two Wedge brackets or two Slim brackets before marking the wall. Choose the matching animation.
Reference 40955
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver with a bit that fits the supplied screws
- Level
- Fine-tip pen or pencil
- Stud finder, if needed
- Drill and drill bit, if needed for your screws or anchors
- Tape measure, if needed
Parts & hardware
- Tray
- 2 Wedge brackets: 8 low-profile M3 screws and 8 washers
- OR 2 Slim brackets: 6 low-profile M3 screws and 6 washers
- Pre-installed threaded inserts
- 4 wall screws and suitable anchors (if ordered)
Attach the tray to its brackets
Choose the guide for the style selected in your order. These steps cover the Tray mount. For the Arm option, follow https://install.bp3dprintshop.com/products/c5852256-1465-4029-9921-213ef53ab57f instead. Orient the tray as shown in the selected animation. For two Wedges use four M3 screws and washers per bracket (eight total). For two Slim brackets use three per bracket (six total). Threaded inserts are already installed. Place washers and screw heads in the tray recesses and tighten evenly, keeping them below the support surface.
Mark the assembled mount
Hold the empty assembled mount level against the wall and mark all four wall holes. Allow clearance for the complete model.
Prepare the wall
Check for concealed wiring and pipes. Prepare each marked hole and fit suitable anchors according to the supplied hardware instructions and your wall material.
Secure the assembled mount
Start all wall screws, check alignment, and tighten gradually until snug without bending the printed parts. Check the empty mount for movement before loading.
Place the set
Support the model with both hands and place it on its intended supports. Check every connection is fully engaged and the model is stable before releasing your support. Remove the model before moving or retightening the wall mount.
