Set Specific Directions

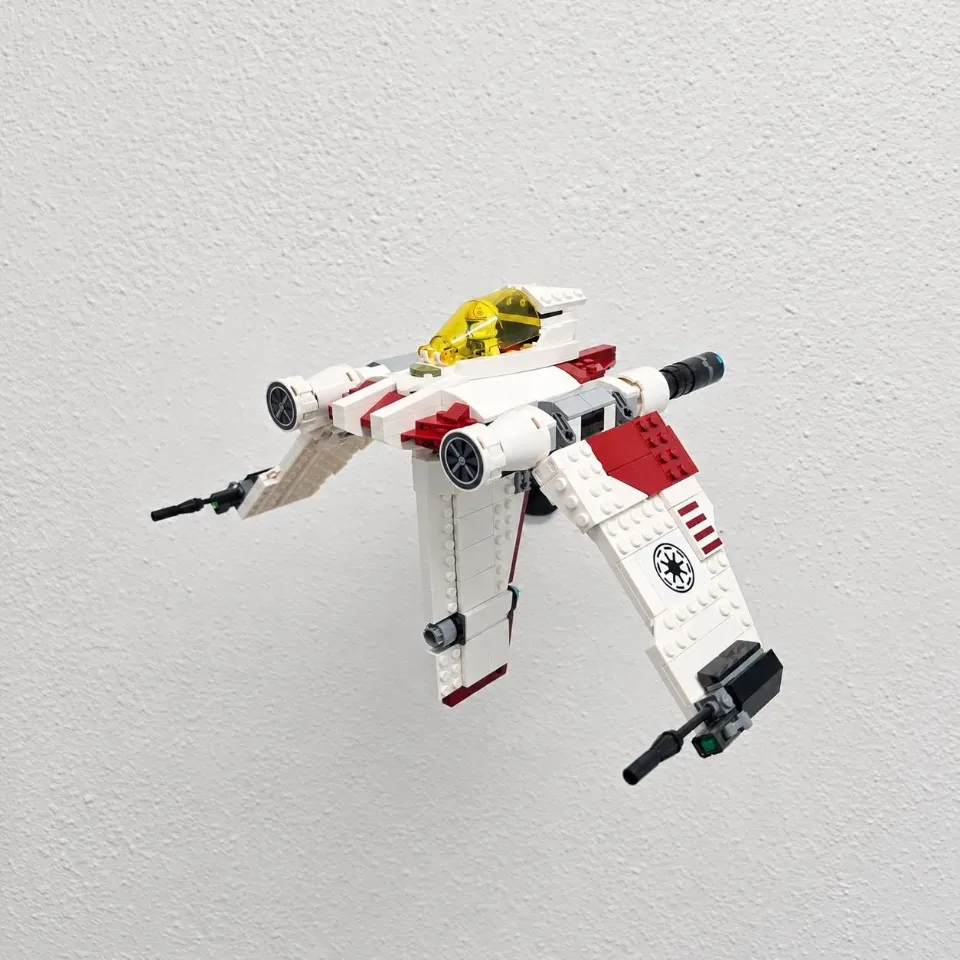

Adjustable Wall Mount for LEGO® V-19 Torrent Starfighter (75432)
Install the Mini arm and fit the supplied brick top. Choose the animation for the arm supplied with your order, then follow the written installation steps.
Reference 75432
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver
- Level
- Fine-tip pen or pencil
- Stud finder (optional)
Parts & hardware
- Mini arm
- supplied brick top and locking collar
- Optional screw cover if supplied
- 2 wall screws and suitable anchors (if ordered)
SOURCE YOUR OWN HARDWARE
Need mounting hardware?
If you did not order mounting hardware with your mount, use the specifications and links below to source the hardware you need.
Screws & Anchors (Yellow)
- Specifications
- 20.0-lb 1/4-in x 7/8-in Push-In Anchors with Screws
SEE IT COME TOGETHER
Watch the installation
Watch on YouTubeFollow along with the installation ↗Opens in a new tab so you can keep these instructions handy.
Check the parts and mark the wall
Use the Mini arm and supplied brick top supplied for this set. Keep the top, collar and optional screw cover aside. Hold the empty arm against the wall, check alignment and mark every mounting hole. Leave clearance for the full model and its display angle.
Prepare the wall
Check for concealed wiring and pipes. Prepare each marked hole and fit suitable wall anchors according to the hardware instructions. Seat each anchor flush where used. Use wall hardware appropriate for your wall material and the loaded display.
Secure the arm
Start every wall screw, recheck alignment, then tighten gradually until snug without bending the printed parts. Check the empty mount for movement before loading it.
Fit the optional cover and top
If supplied, slide the cover into place without forcing it. Fit the top to the ball joint and thread its locking collar on by hand. Keep the threads aligned and tighten until the top holds securely. Do not overtighten.
Attach the model and set the angle
Support the model with both hands. Engage its intended underside connection with the supplied top, near the balance point. Use a strong structural connection, not loose or decorative bricks. Keep supporting the weight while adjusting the joint. Start with a level or modest angle; steep angles can strain the mount or cause the set to detach. Release your support only when fully engaged and stable. Remove the model before moving or retightening the wall mount.
