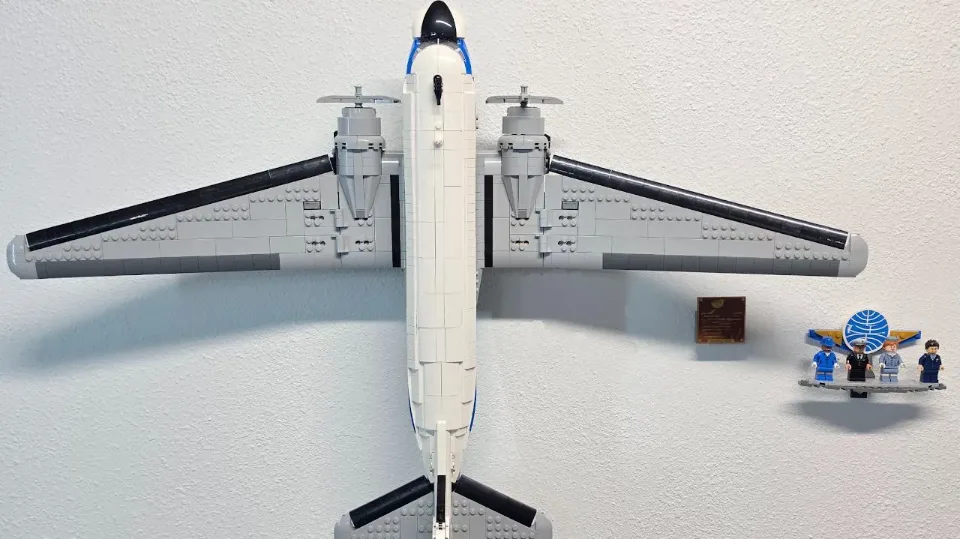

Vertical Wall Mount for LEGO® Douglas™ DC-3™ Pan Am® Airliner (11378)
Follow the video to prepare the aircraft’s connection, then install the wall cleat and seat the set. The adjustable version uses the general arm-style guide.
Reference 11378
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this item Choose a different itemBefore you start
Tools needed
- Screwdriver
- Level
- Fine-tip pencil
- Tape measure
- Stud finder and drill, if required by your wall hardware
Parts & hardware
- Vertical mount kit with wall cleat and set attachment
- Wall screws and anchors appropriate for your wall (supplied only if ordered)
SOURCE YOUR OWN HARDWARE
Need mounting hardware?
If you did not order mounting hardware with your mount, use the specifications and links below to source the hardware you need.
Screws & Anchors (White/Blue)
- Specifications
- 25.0-lb 3/16-in x 1-1/4-in Push-In Anchors with Screws
SEE IT COME TOGETHER
Watch the installation
Watch on YouTubeFollow along with the installation ↗Opens in a new tab so you can keep these instructions handy.
Follow the adapter demonstration
Choose the guide for the style selected in your order. These steps cover the Vertical mount. For the Adjustable option, follow https://install.bp3dprintshop.com/products/917e818a-c479-4bbb-987b-a8c99ef65790 instead. Watch the original video above in full. With the aircraft supported, prepare and fit the set-side attachment as demonstrated. Pause to check orientation and engagement before moving on; the original written guide leaves these details to the video.
Choose the location and mark the cleat
Choose a location with room for the complete set and clearance from nearby objects. Use screws and, where needed, anchors suitable for your wall material and the combined weight of the mount and set. Follow the hardware manufacturer’s instructions for hole size and installation. Check for concealed services before drilling. Hold the mounting part in position, check its alignment with a level, and mark the holes. Allow clearance to lift the aircraft into position and seat it on the cleat.
Secure the wall cleat
Line up the mount with the prepared holes. Start the screws, check the alignment, then tighten gradually with a screwdriver until the mount is firm against the wall. Do not overtighten or bend the printed mounting points. If the mount moves or rocks, correct the installation before adding your set.
Place the aircraft on the cleat
Keep the aircraft’s weight supported while aligning its attachment with the cleat. Seat it in the direction shown in the video. Do not release the set until the connection is fully engaged and the aircraft is stable.
Check the finished display
Gradually release your support only after the set is fully seated and stable. Check that the wall mount, adapter, and brick connections remain secure. If anything shifts or loosens, remove the set and correct the problem before displaying it. Support the set whenever you adjust or remove it.
