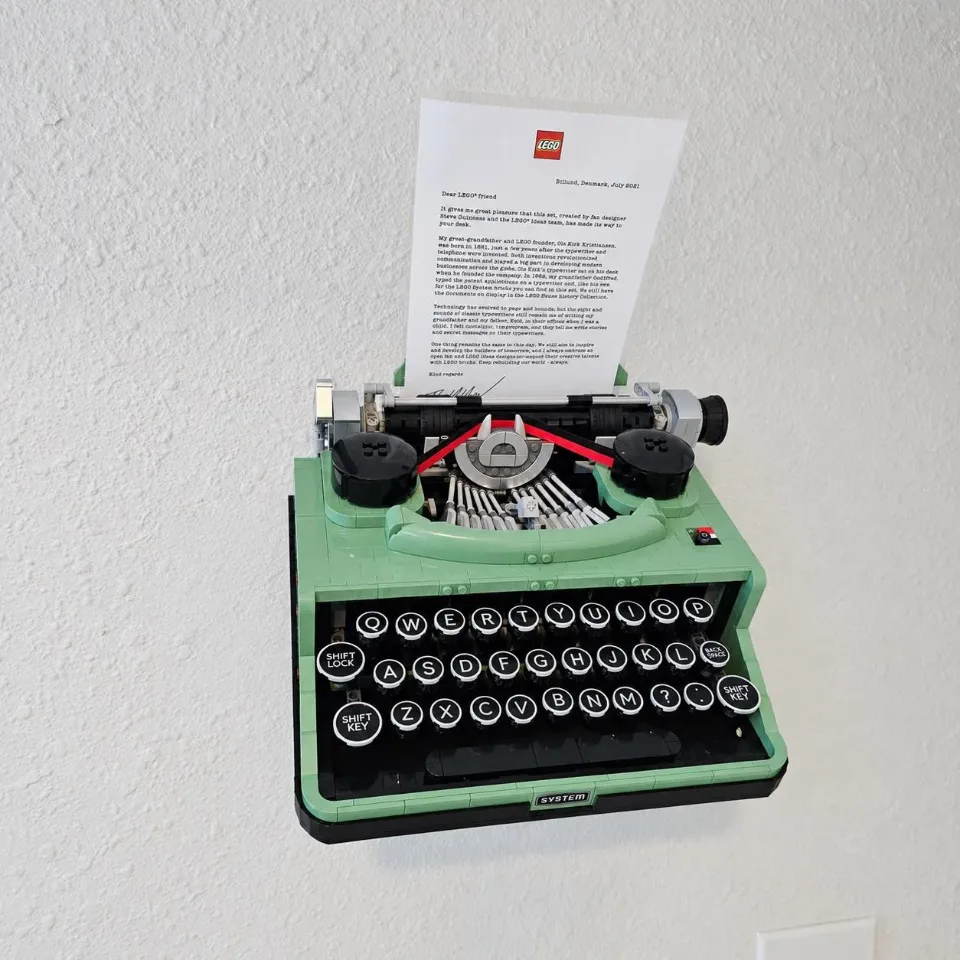

Angled Wall Mount for LEGO® Typewriter (21327)
Attach the tray to two inverted Large brackets before marking the wall. The threaded inserts are already fitted in the bottom holes of the brackets.
Reference 21327
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver with a bit that fits the supplied screws
- Level
- Fine-tip pen or pencil
- Stud finder, if needed
- Drill and drill bit, if needed for your screws or anchors
- Tape measure, if needed
Parts & hardware
- Tray
- 2 Large brackets, fitted upside down as shown
- 4 low-profile M3 screws and 4 washers
- Pre-installed threaded inserts
- 8 wall screws and suitable anchors (if ordered)
Attach the tray to the inverted brackets
Orient both Large brackets upside down as shown. Their pre-installed inserts are in the bottom attachment holes. Align the tray, place the four washers and low-profile M3 screws in its recesses, and tighten evenly into those inserts. Keep all heads and washers below the tray support surface. The inserts are already installed; do not fit new ones.
Mark the assembled mount
Hold the empty assembled mount in place, check alignment and allow clearance for the Typewriter. Mark the wall holes with a fine-tip pencil or pen from an accessible angle, keeping the marking tool clear of the tray.
Prepare the wall
Check for concealed wiring and pipes. Prepare each marked hole and fit suitable wall anchors according to the hardware instructions. Seat each anchor flush where used.
Secure the assembled mount
Start every wall screw, recheck alignment, then tighten gradually until snug without bending the printed parts. Check the empty mount for movement before loading it.
Place the Typewriter
Support the set from underneath and lower it onto the intended attachment points. Check that all connections are fully engaged and stable before releasing your support. Remove the set before moving or retightening the mount.
