Set Specific Directions

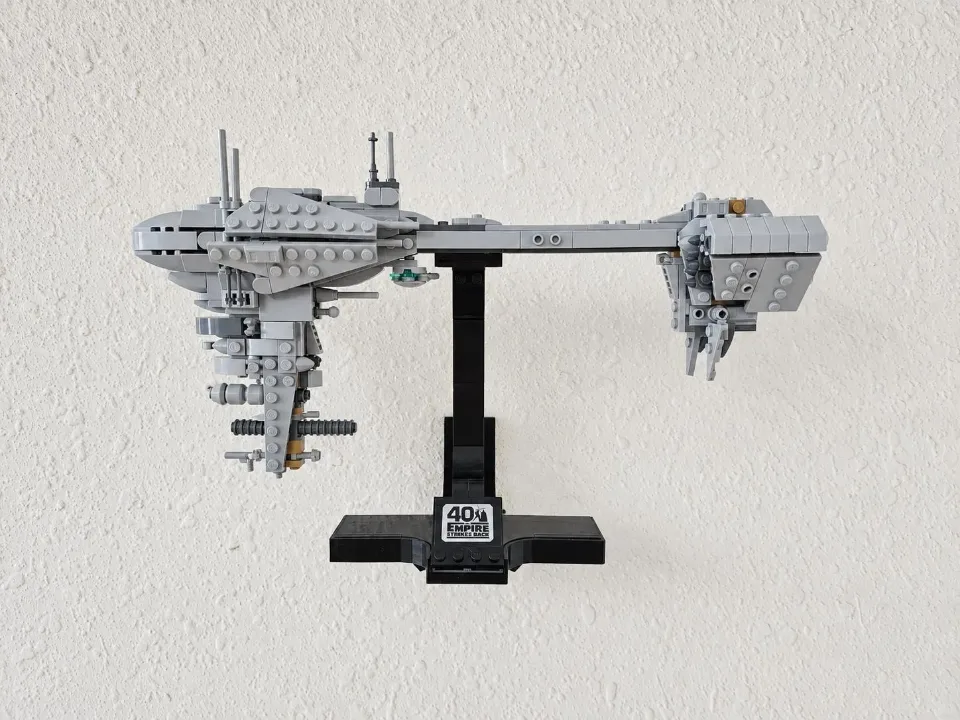

Wall Mount for LEGO® Nebulon-B Frigate™ (77904)
Assemble the tray and brackets before marking the wall. Use the animation for your supplied bracket type.
Reference 77904
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Level, pencil, screwdriver, tape measure, and a drill and bit suitable for your wall hardware.
Parts & hardware
- Slim: 1 bracket(s), 2 low-profile M3 screws and washers; threaded inserts are pre-installed.
- Wedge: 1 bracket(s), 2 low-profile M3 screws and washers; threaded inserts are pre-installed.
- 2 wall screws and suitable anchors.
Attach the tray to its bracket
Match the holes and bracket orientation shown. Place a washer and low-profile M3 screw into each selected tray recess and start them by hand into the pre-installed inserts. Tighten evenly until snug. All screw heads and washers must remain below the tray supporting surface. Do not install or remove the inserts.
Mark the assembled mount
Hold the empty, assembled mount against the wall, check the tray alignment and clearance for the full set, and mark all wall holes.
Prepare the wall
Check for concealed wiring and pipes. Prepare each marked hole and fit suitable wall anchors according to the hardware instructions. Seat the yellow anchors flush where used.
Secure the assembled mount
Start every wall screw, recheck alignment, then tighten gradually until snug without bending the printed parts. Check the empty mount for movement before loading it.
Place the set
Support the set from underneath and lower it onto its intended support areas. Check that it is fully seated and stable before releasing your support. Remove the set before adjusting or tightening the mount.
