Set Specific Directions

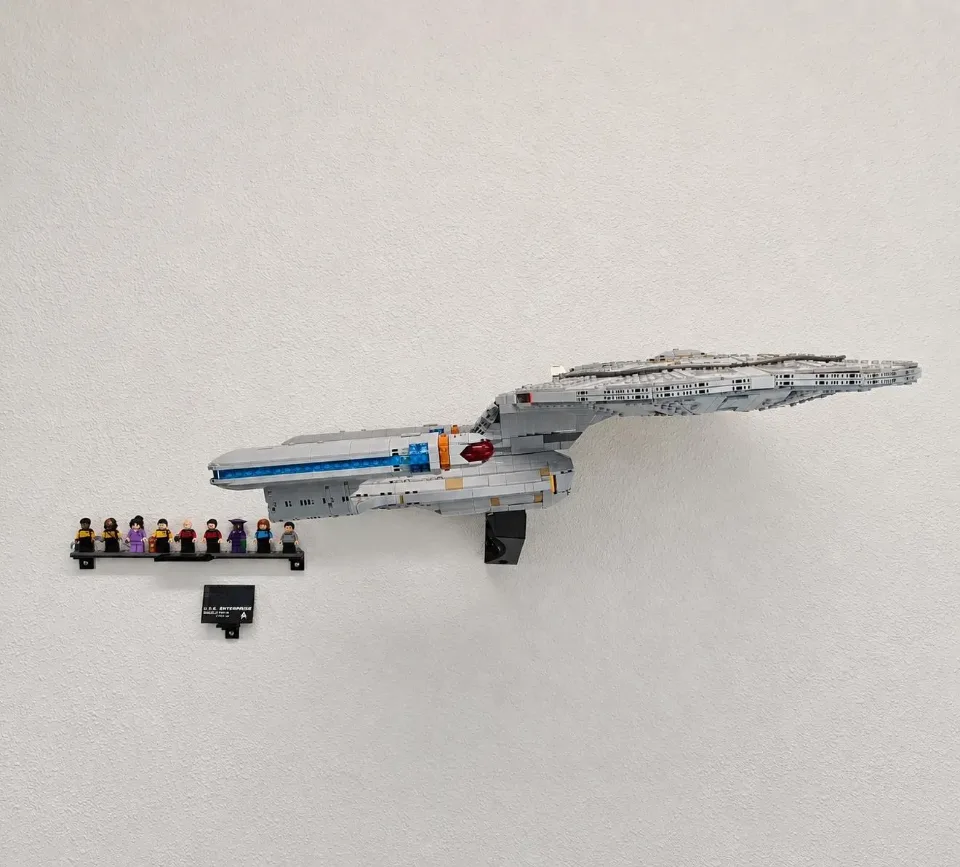

Horizontal Wall Mount for LEGO® Star Trek: U.S.S. Enterprise NCC-1701-D™ (10356)
Choose the bow-left or bow-right animation for the horizontal Enterprise mount. Check the support spacing against your actual model before marking the wall; the animation shows illustrative spacing.
Reference 10356
These instructions apply to this item. Follow the steps below and any item-specific notes.
Purchase this itemBefore you start
Tools needed
- Screwdriver with a bit that fits your wall screws
- Level
- Tape measure
- Fine-tip pen or pencil
- Stud finder, if needed
- Drill and drill bit, if needed for your screws or anchors
Parts & hardware
- Set-specific horizontal supports
- 4 wall screws and suitable anchors (if ordered)
Choose the display direction and locate the supports
Choose the guide for the style selected in your order. These steps cover the Horizontal (bow left / bow right) mount. For the Vertical option, follow https://install.bp3dprintshop.com/products/ce840640-ea2c-412a-ae74-f65798a51fc1 instead. Use the bow-left or bow-right animation to orient the supplied supports. Check their intended contact points against the model and measure the required spacing. The animation is not a drilling template.
Mark the wall
Hold the empty supports at the measured spacing, align their support surfaces and mark all four wall holes. Leave clearance for the complete model.
Prepare the wall
Check for concealed wiring and pipes. Prepare each marked hole and fit suitable wall anchors according to the hardware instructions. Seat each anchor flush where used.
Secure the supports
Start every wall screw, recheck alignment, then tighten gradually until snug without bending the printed parts. Check the empty mount for movement before loading it.
Place the Enterprise
Support the set from underneath and lower it onto the intended attachment points. Check that all connections are fully engaged and stable before releasing your support. Remove the set before moving or retightening the mount.
